MACB Timeline

File tree visualization with MACB (Modified, Accessed, Changed, Birth) timestamps for forensic analysis.

Basic Usage

#import "@preview/forensix:0.1.0": macb-timeline, file-entry, folder-entry

#macb-timeline(
  title: "Suspicious Directory",
  entries: (
    folder-entry("C:\\Users\\Admin\\", depth: 0, ...),
    file-entry("malware.exe", depth: 1, ...),
  ),
)

Parameters

macb-timeline

Parameter	Type	Default	Description
title	string	none	Table title
entries	array	()	Array of file/folder entries
style	dict	(:)	Custom styling

file-entry / folder-entry

Parameter	Type	Default	Description
name	string	required	File/folder name
depth	int	0	Indentation level
type	string	"file"	"file" or "folder"
modified	string	none	Modified timestamp (M)
accessed	string	none	Accessed timestamp (A)
changed	string	none	Changed timestamp (C)
birth	string	none	Birth timestamp (B)
highlight	color	none	Row highlight color

Timestamp Format

Use "YYYY-MM-DD HH:MM:SS" format:

modified: "2023-10-27 02:00:00",
accessed: "2023-10-27 02:01:15",
changed: "2023-10-27 02:00:00",
birth: "2023-10-27 02:00:00",

Anomaly Highlighting

Highlight suspicious files with a background color:

file-entry(
  "svchost_fake.exe",
  depth: 1,
  modified: "2022-06-01 12:00:00",  // Fake old date
  changed: "2023-10-27 03:44:58",   // Recent MFT change!
  birth: "2023-10-27 03:44:55",     // Actually created recently
  highlight: rgb("#fecaca"),        // Red highlight
)

Timestomping Detection

The key to detecting timestomping is comparing the M (Modified) timestamp with the C (Changed/MFT) timestamp. If M shows an old date but C shows a recent date, the file was likely timestomped.

#macb-timeline(
  title: "Evidence of Timestomping",
  entries: (
    file-entry(
      "suspicious.exe",
      depth: 0,
      modified: "2020-01-01 00:00:00",  // Impossibly old
      accessed: "2023-10-27 03:45:22",
      changed: "2023-10-27 03:44:58",   // Reveals true time!
      birth: "2023-10-27 03:44:55",
      highlight: rgb("#fecaca"),
    ),
  ),
)

Tree Structure

The depth parameter controls indentation and tree connectors:

folder-entry("C:\\", depth: 0, ...),         // Root
folder-entry("Windows\\", depth: 1, ...),    // ├ Child
file-entry("explorer.exe", depth: 2, ...),   // │ └ Grandchild
folder-entry("Users\\", depth: 1, ...),      // └ Sibling

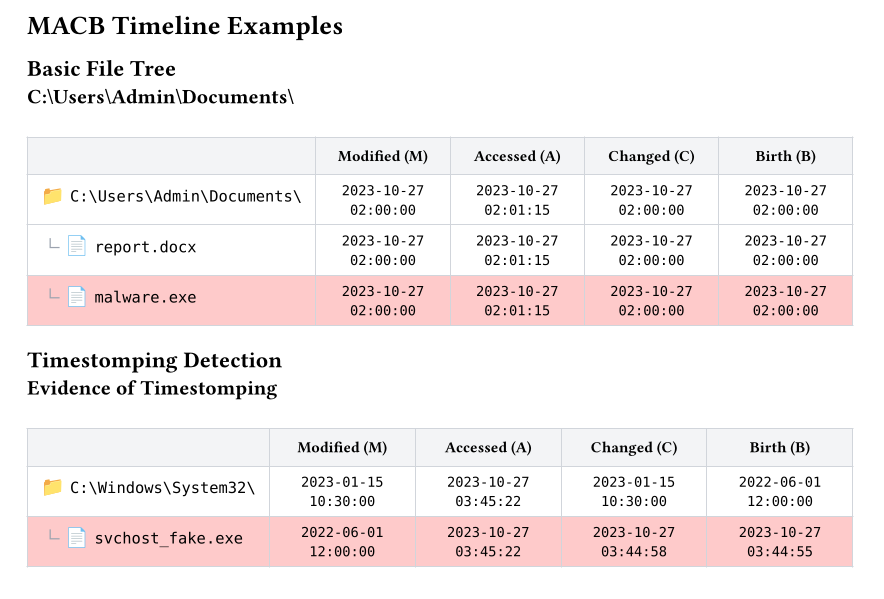

Example
