Hex Dump

Professional hex dump visualization with the hexdump -C layout.

Basic Usage

#import "@preview/forensix:0.1.0": hexdump

#hexdump(data: bytes)
#hexdump(file: "/path/to/file.bin")

Parameters

Parameter	Type	Default	Description
data	bytes/array/str	none	Data to dump
file	string	none	Path to file to read
columns	int	16	Bytes per row (8 or 16)
theme	string	none	Color theme
highlight	array/dict	()	Byte values to highlight
highlight-ranges	array	()	Position ranges to highlight
annotations	dict	(:)	Offset annotations
print-ranges	array	()	Partial printing ranges
base-address	int	0	Base address offset
address-width	int	8	Hex digits for offset
group-bytes	int	1	Bytes per group (1, 2, 4)
regions	array	()	Named regions with labels
show-connectors	bool	false	Annotation connector lines

Themes

Available themes: light, dark, dracula, matrix, monokai, nord, cyberpunk, gruvbox

#hexdump(file: "malware.bin", theme: "dracula")

Highlighting

// By byte value
#hexdump(data: bytes, highlight: (0x4d, 0x5a, 0x90))

// With custom colors
#hexdump(data: bytes, highlight: (
  "0x4d": blue,
  "0x5a": green,
))

// By position range
#hexdump(data: bytes, highlight-ranges: (
  (start: 0, end: 16, color: yellow),
  (start: 64, end: 80, color: orange),
))

Annotations

#hexdump(
  data: shellcode,
  annotations: (
    "0": "Entry Point",
    "16": (text: "Payload", color: red),
    "0x20": "String Data",
  ),
)

Partial Printing

#hexdump(
  file: "large_file.bin",
  print-ranges: (
    (start: 0, end: 64),      // First 64 bytes
    (start: 1024, end: 1088), // Offset 1024
  ),
)
// Renders [...] separator between ranges

Byte Grouping

#hexdump(data: bytes, group-bytes: 2)  // WORD
#hexdump(data: bytes, group-bytes: 4)  // DWORD

Regions

#hexdump(
  data: pe_header,
  regions: (
    (start: 0, end: 64, label: "DOS Header", color: blue.lighten(80%)),
    (start: 64, end: 128, label: "PE Header", color: green.lighten(80%)),
  ),
)

Virtual Addresses

#hexdump(
  data: memory_dump,
  base-address: 0x00401000,
  address-width: 8,
)

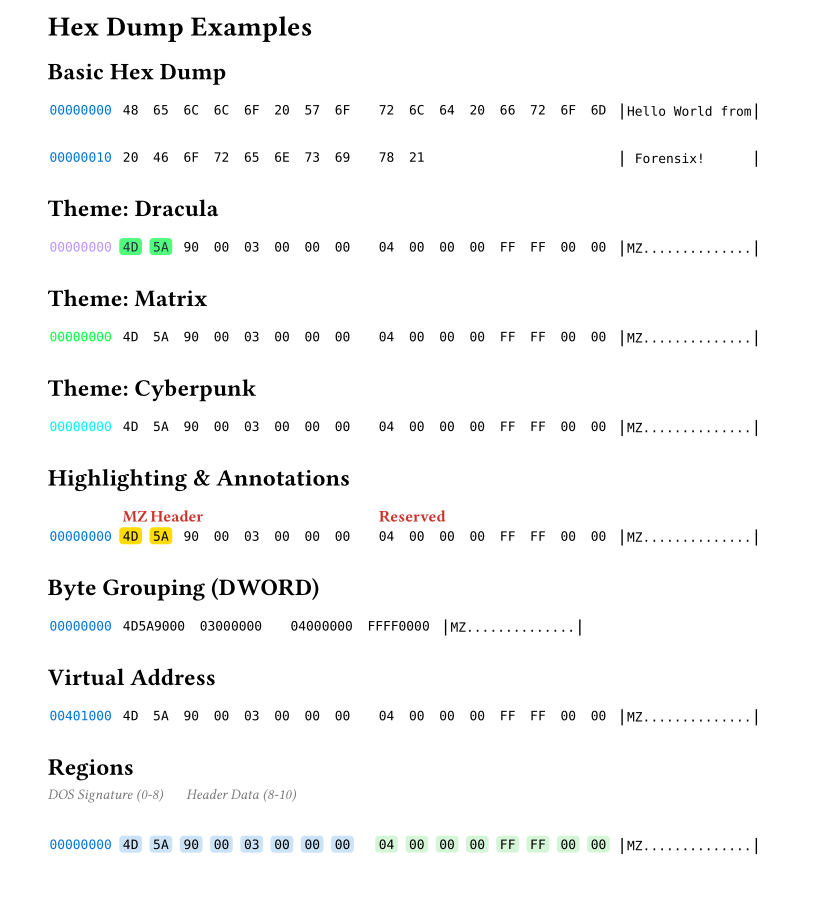

Example
